2024 Lexus LM: Variants explained

Lexus recently introduced the all-new second-gen LM in the Malaysian market. Based on the brand’s GA-K platform, the luxury MPV is offered in two variants here - LM350h and LM500h, priced at RM 1,228,000 and RM 1,468,000, respectively. Differentiating these variants is the powertrain, seating capacity, and a few other luxe features. Let’s know all the distinctions in detail -

Engine specs

As mentioned above, the Malaysia-spec Lexus LM variants come powered by different hybrid engine setups. The LM350h is equipped with a combination of a 190 PS 2.5-litre Dynamic Force naturally-aspirated gasoline VVT-iE mill and an 182 PS/270 Nm twin electric motor setup. The combined output of the system is rated at 250 PS and 239 Nm, transferred to the front wheels via an e-CVT gearbox. Performance-wise, this LM model runs from a standstill to 100 kmph in 9.1 seconds and clocks a top speed of 190 kmph.

On the contrary, the top-spec LM500h houses a 2.4-litre turbo Dual VVT-i four-cylinder engine that generates a maximum power of 275 PS and a peak torque of 460 Nm. It is paired with a front and a rear motor tuned to produce 87 PS/292 Nm and 103 PS/169 Nm, respectively. Together, the setup kicks out a combined output of 371 PS and 550 Nm.

As for the transmission, it gets a 6-speed Direct Shift automatic transmission, sending power to all four wheels of the MPV. The LM500h can complete the century sprint faster than the LM350h, taking 2.2 seconds less at 6.9 seconds. The top speed is rated at 185 kmph.

Here’s a quick comparison of the hybrid mills

Model	LM350h	LM500h
Engine	2.5-litre Dynamic Force naturally-aspirated VVT-iE four-cylinder	2.4-litre turbo Dual VVT-i four-cylinder
Motors	Dual	Dual
Max output	250 PS  and 239 Nm	371 PS and 550 Nm
Transmission	e-CVT	6-speed Direct Shift AT
Drive system	Front-wheel	All-wheel
0-100 kmph	9.1 seconds	6.9 seconds
Top speed	190 kmph	185 kmph
Fuel consumption	5.5 litres per 100 km	6.6 litres per 100 km

Seating

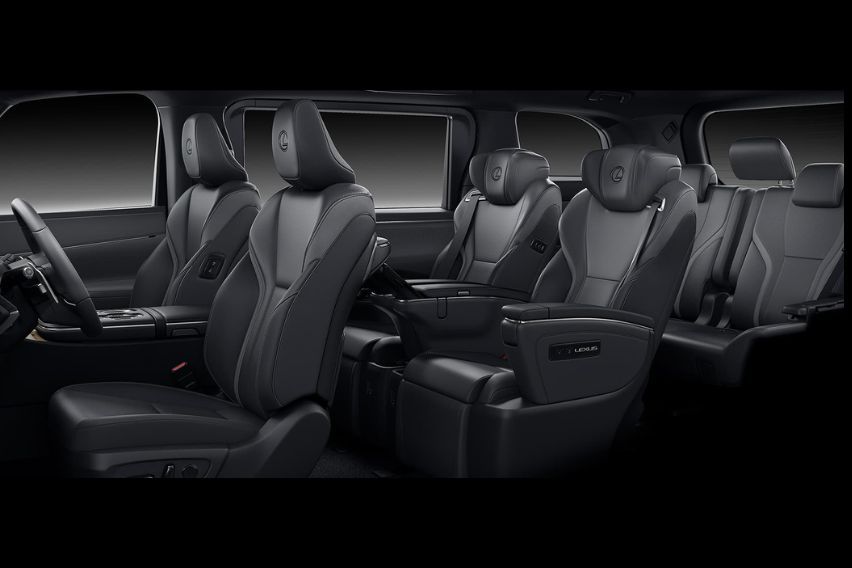

The new Lexus LM comes in two seating configurations in Malaysia. The LM350h is kitted with seven seats in a 2-2-3 layout, offering enough space for a larger family or group. It incorporates electrically adjustable captain seats in the second row and three seats at the back. There is a 14-inch ceiling-mounted rear monitor available for the rear passengers.

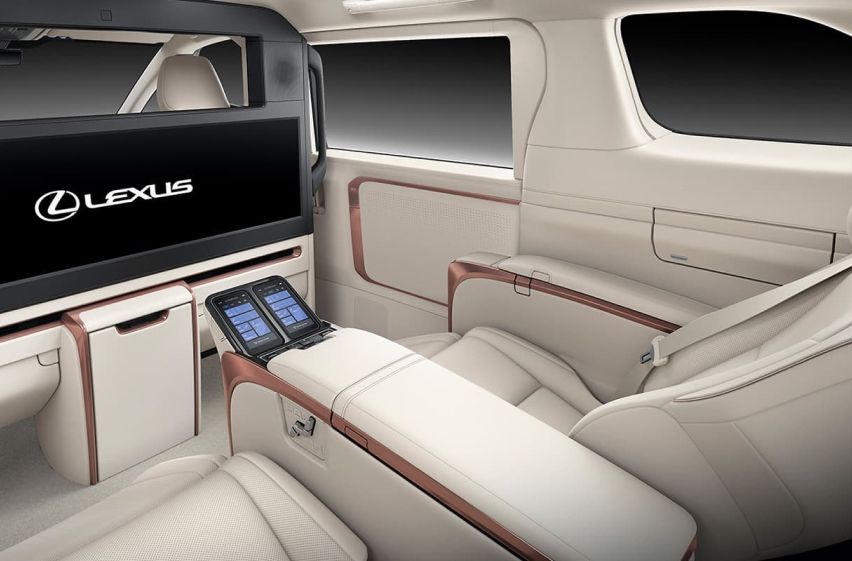

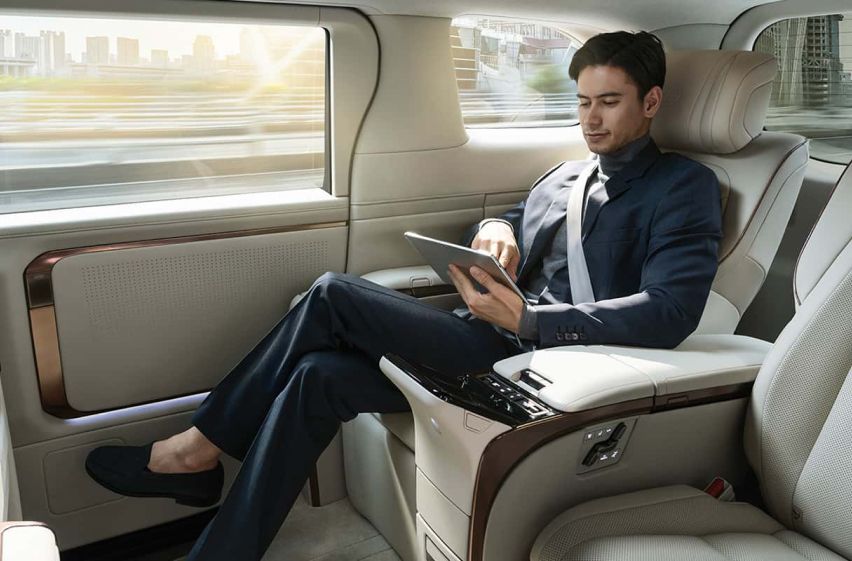

On the contrary, the LM500h offers seating space for four passengers with seats configured in a 2-2 layout. The business class-style seats in the second row mimic the ones found in private jets, first-class commercial airline cabins, and cruiser boats. They are ergonomically optimised and incorporate an anti-vibration frame and bowed armrests for optimal comfort. These are “among the most advanced and comfortable ever crafted by Lexus.”

The seats can be fully reclined and include an ottoman, along with heating, ventilation, and massage features. Occupants can control these functions with removable tablet devices similar to smartphones. A bigger 48-inch widescreen display is mounted on a partition between the front and rear cabins.

Dimensions

Model	LM350h	LM500h
Length	5,125 mm	5,125 mm
Width	1,890 mm	1,890 mm
Height	1,955 mm	1,955 mm
Wheelbase	3,000 mm	3,000 mm
Boot	110 litres (with third-row seats in place) 1,191 litres (with third-row seats fold up)	752 litres

As revealed in the above table, both models share the same dimensions in terms of length, width, height, and wheelbase. However, what sets them apart is the boot capacity, which varies due to differences in seating layouts.

Suspension

In terms of suspension setup, both MPVs come equipped with improved MacPherson struts at the front and Double wishbone at the rear, promising a more controlled driving experience, higher passenger comfort levels, and a roomier interior. They also feature the Adaptive Variable Suspension system for “improved stability and superior steering response for a comfortable ride.”

Features

Model	LM350h	LM500h (Over LM350h)
Exterior	Spindle front grille Three-projector LED headlights LED DRLs LED tail lights e-Latch handles on front doors Powered rear sliding doors 19-inch aluminium wheels Powered tailgate	-

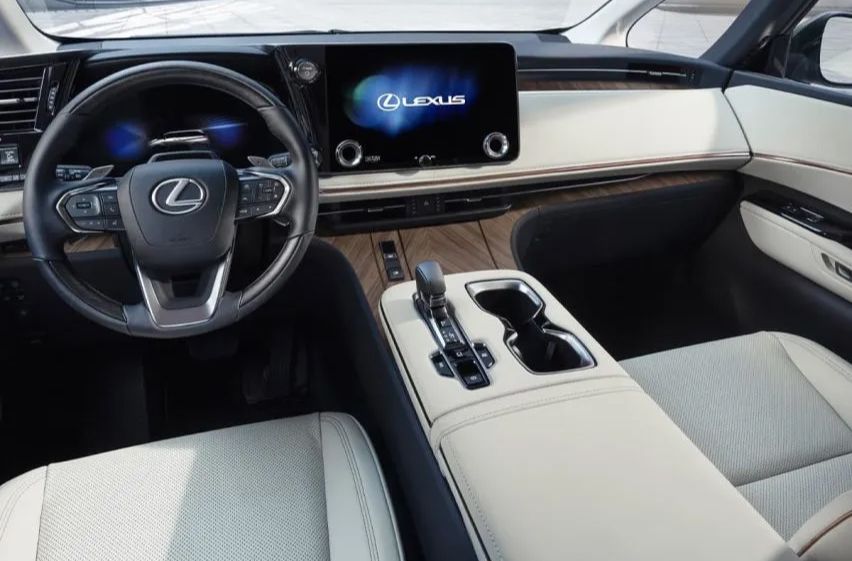

Interior	Lexus’ Tazuna infotainment interface with a 14-inch centre touchscreen and 12.3-inch digital instrument cluster Wireless Apple CarPlay and wired Android Auto Leather-wrapped multifunction steering wheel Captain seats in the second-row Four-zone Lexus Climate Concierge system Leather upholstery Qi wireless charging Ambient lighting Keyless entry Push-button start 360-degree camera with a “see-through” mechanism Twin glass roofs with power-operated sunshades Rear multi-operation panel 21-speaker Mark Levinson sound system 14-inch ceiling-mounted display	Business class-style second-row seats 23-speaker Mark Levinson sound system 48-inch widescreen rear display A glass panel partition for the rear cabin area Fridge Large twin storage compartments
Safety	SRS Airbags Dynamic Radar Cruise Control Pre-Collision System with Intersection Assistance Rear Cross Traffic Alert Safe Exit Assist  Lane Tracking Assist  Lane Departure Alert  Panoramic View Monitor  Advanced Drive Advanced Park Adaptive High Beam	-



In a nutshell, the latest versions of the Lexus LM take luxury to new heights in the mobility segment, catering to those seeking an extra level of comfort and style in their everyday travel.
